XM-XT 36490 Continuous Level Transmitter

Part Number:
Configure Product REQUEST A QUOTE
XM-36490

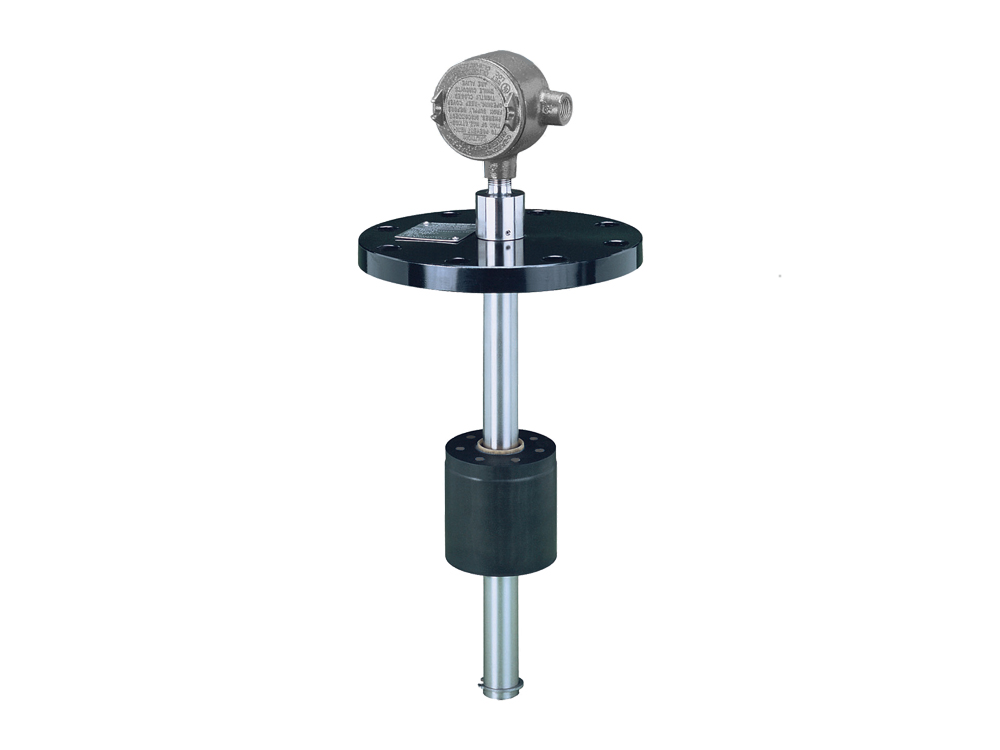

Image is of similar product

PRODUCT DESCRIPTION:

XM/XT 36490 Series Continuous Level Transmitter is a rugged transmitter designed for tanks up to 18 feet (5.48 m) in depth. Heavy duty stems resist turbulence and float options accommodate liquids with minimum specific gravity as low as 0.53. Standard resolution is ½ inch (13 mm). Higher resolutions and solutions for deeper tanks are available on request.

  • 5" ANSI Flanges)
  • Stainless Steel Construction)
  • Standard Lengths to 18 Feet (5.48 m)

FEATURED DOWNLOADS:

Catalog Page

Features

  • 5" ANSI Flanges
  • Stainless Steel Construction
  • Standard Lengths to 18 Feet (5.48 m)
Model
XM-XT 36490
Sensor Type
Continuous Level Transmitters
Range
Up to 280"
Resolution
1/2"
Supply Voltage
Configurable
Signal Output
Configurable
Minimum Process Temperature
-40°F
Maximum Process Temperature
230°F
Pressure
2000 psi max
Electrical Connection
Configurable
Process Connection
Configurable
Instructions_133702

Reed Switch Protection

Format .pdf
Size 56 KB
Download
Instructions_78805

Gems Sensors Instructions, 3600 Tank Level Transmitters

Format .pdf
Size 762 KB
Download
Catalog-C_Large_Alloys_thumb

Gems Sensors Catalog, Large Alloy Transmitters

Format .pdf
Size 867 KB
Download
