A magnet-equipped float moves with liquid level along the unit stem, inside the storage vessel. Level readout is obtained by simply removing the protective cap on top of the unit and lifting the calibrated indicator (within the unit) until magnetic interlock with the float is felt. The indicator is held at this point and level is read where the calibration aligns with the top of the mounting. The indicator is then lowered back inside the unit for storage and is protected by the screw type cap when not in use.

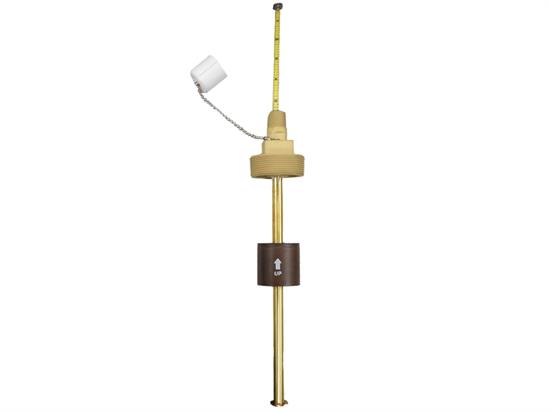

Alloy DIPTAPE Visual Level Indicators are rugged brass or stainless-steel units that are ideal for use in water and oils. These units capabilities include temperature up to 300°F (148°C) and pressure up to 750 psi (52 bar).Solid-State...
PVC DIPTAPE Visual Level Indicators are ideal for chemical storage tanks. These economical,light duty versions are recommended for use in calm liquids and ambient temperature and pressure levels.Indication Markings Available in Inches or...
